Outdoor Storage That Stays Useful
Plastic deck boxes promise instant backyard organization, but anyone who has opened a sealed resin chest in July knows the reality: damp garden gloves mildew, trapped humidity rusts bypass pruners, and long-handled digging spades still lean precariously against the house siding because they do not fit inside a 48-inch box.
Useful outdoor storage relies on three mechanical principles: elevating wood 3 inches off wet soil on concrete deck blocks, pitching the roof at least 15 degrees with a 2-inch drip overhang, and building under-eave airflow gaps so wet shovels dry within an hour of being hung up.
The Vertical Cedar Tool Locker & Potting Station
Footprint: 24 Inches Deep x 48 Inches Wide
Requires: Circular saw, impact driver, speed square, tin snips (for galvanized roof flashing)
By dividing a 4-foot-wide locker into a full-height 68-inch vertical bay on the left (for rakes, spades, string trimmer, and steel tampering bar) and a three-shelf caddy bay on the right (for terracotta pots, seed trays, twine, and hand trowels), every tool has a visible silhouette.
- Foundation Blocks (No-Pour)4 pcs — Precast Concrete Deck Pier Blocks
- Base & Frame Studs8 pcs — 2x4x8 ft Ground-Contact Treated
- Siding & Door Slats18 pcs — 5/8" x 5-1/2" x 6 ft Cedar Fence Pickets
- Roof Panel & Drip Edge1 Sheet — 26" x 72" Corrugated Galvanized Steel
- Exterior Hardware (Confirmed)4 Heavy T-Hinges, 1 Cane Bolt, 1 Hasped Latch ($42)
Expand French-Cleat Tool Hanging Bar Dimensions
Rip a single 48-inch scrap of 2x6 cedar down its center at a 45-degree bevel using a circular saw. Screw the bottom half (bevel facing up and toward the back wall) across the upper back studs of the tall tool bay. Cut the remaining beveled strip into 6-inch blocks fitted with paired 3/4-inch oak dowels to create movable, rock-solid hangers for D-handle spades and garden forks.

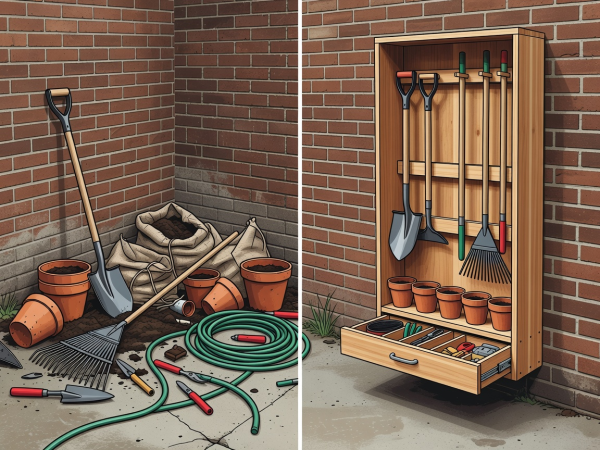

Fig 09. Before-and-after zone audit: reclaiming 32 square feet of slab with an 8-square-foot vertical locker.
Saturday Build Sequence: Frame, Slat & Hang
- Level Four Concrete Deck Blocks on Gravel Pads (30 mins): Dig four 12x12-inch squares 2 inches deep, fill with compacted crushed stone, and level four precast concrete deck blocks so the cedar locker frame sits high and dry above splash-back.
- Frame the 24x48 Base & Sloped Side Walls (60 mins): Build the front wall 66 inches tall and the rear wall 72 inches tall. This built-in 6-inch drop over a 24-inch depth creates an automatic 14-degree shed roof slope that sheds rain away from the front doors.
- Clad With Cedar Fence Pickets Using Nickel Spacers (60 mins): Standard dog-ear cedar fence pickets cost a third of select architectural boards. Trim off the dog-ear tops and fasten them vertically with a 1/16-inch gap (the thickness of a five-cent nickel) so air circulates without letting wind-driven rain reach your tools.
- Fasten Corrugated Steel Roof Panel With Neoprene-Washer Screws (30 mins): Leave a 2-inch overhang on all four sides and drive hex-head roofing screws with EPDM rubber washers through the high ridges (or valleys per manufacturer spec) into 2x4 roof purlins.
- Hang Cross-Braced Doors & Install Tool Pegs (60 mins): Frame two 23-inch-wide doors using 1x4 stiles and a diagonal Z-brace that runs down to the lower hinge corner (preventing door sag). Mount with 6-inch black powder-coated T-hinges.
Outdoor Organization Cost Comparison
| Organization Build | Capacity & Purpose | Confirmed Hardware Spend | Rough Lumber & Roof Spend | Total Estimated Spend |
|---|---|---|---|---|
| Vertical Cedar Tool Locker (2x4 ft) | 8 long-handle tools + 3 pot shelves + hose hook | $44 (T-hinges, latch, EPDM roof screws, exterior screws) | $125 – $180 (deck blocks, 2x4 frame, 18 cedar pickets, steel panel) | $169 – $224 |
| Dry-Sink Potting Bench (2x5 ft) | Removable 16x20" mortar tub soil bin + lower bag rack | $36 (structural screws, 6 brass towel/trowel hooks, mortar tub) | $95 – $145 (six 2x4x8 studs, eight 1x6x6 cedar top boards) | $131 – $181 |
| 4-Foot Firewood & Kindling Rack | 1/2 face-cord elevated 6" off ground with top roof | $24 (3-1/2" structural screws, roofing screws) | $55 – $85 (five 2x4x8 PT boards, 2 concrete blocks, 1/2 roof panel) | $79 – $109 |
